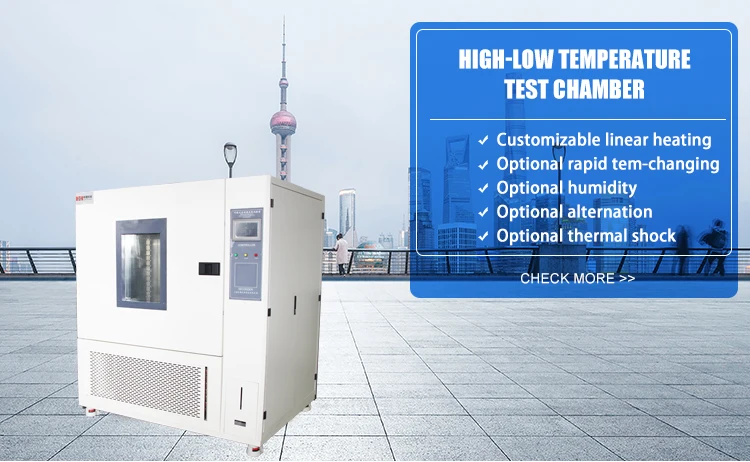

High and low temperature test chamber
Brand
HESON
Model
HS series
Specifications
Applications
Transaction customer
Selection guide
Product Description

product parameters
Model No | HS-80(A,B,C) | HS-150(A,B,C) | HS-225(A,B,C) | HS-408(A,B,C) | HS-800(A,B,C) | HS-1000(A,B,C |
Inner chamber size W×H×D(mm) | 400x400x500 | 500*500*600 | 500x600*750 | 600*800*850 | 1000*800*1000 | 1000x1000x1000 |
Exterior chamber size W×H×D(mm) | 1100*710*1360 | 1170*850*1460 | 1170*910*1660 | 1400*1010*1760 | 1700*1110*1860 | 1800*1230*1960 |
Temperature range |
A,(-20℃~150℃) B,(-40℃~150℃) C,(-70℃~150℃) |
|||||
Humidity range | 20%~98%RH | |||||
Temp.&Humi fluctuation | ±0.5°C, ±2.5%RH | |||||
Heating up time | 20℃——100℃≤35min | |||||
Heating rate | 1.0℃~3.0℃/min | |||||
Cooling rate | 0.7~1℃/min | |||||
Inner chamber material | 304 stainless steel plate | |||||
Heat insulating materiall | PU and heat insulation cotton | |||||
Control system | Microcomputer control mode, the standard use of Korean imports of three yuan "TEMI1500" color touch type in the English language program temperature controller, P.I.D control SSR | |||||
Heating system | SUS#304 stainless steel high-speed heater | |||||
Cooling | Imported compressor,finned type evaporator,air-cooling condenser | |||||
Power supply | AC 1 phase 220V; 3 phase 380V 60/50Hz |
